Description

Duct Fan Design: Planned to enhance airflow in HVAC systems and ventilate spaces such as attics and workshops. Develops a variable fan speed controller, enabling optimization of airflow and noise level for any application.

Unibody Construction: The unibody die-cast construction has no welded seams to reduce vibration while ensuring smoother airflow. The fan also includes an AC brushless motor with steel blades and lubricated bearings, which might not be suitable in limited airflow applications.

Specifications: The duct size is 6 inches, with dimensions of 7.28 x 5.90 x 5.90 inches. It can provide airflow up to 265 CFM, and its noise level is at 35 dBA. The bearing type used is dual ball.

Product Description: This is an inline fan designed to enhance airflow in heating and air-conditioning applications and ventilate rooms like attics, workshops, bathrooms, and kitchens. It features a unibody framework which helps reduce vibration and ensures smooth and low-resistant airflow. The fan blades, made of balanced steel, have a lifespan of 67,000-hour and spin using permanently lubricated dual-ball bearings to eliminate regular maintenance.

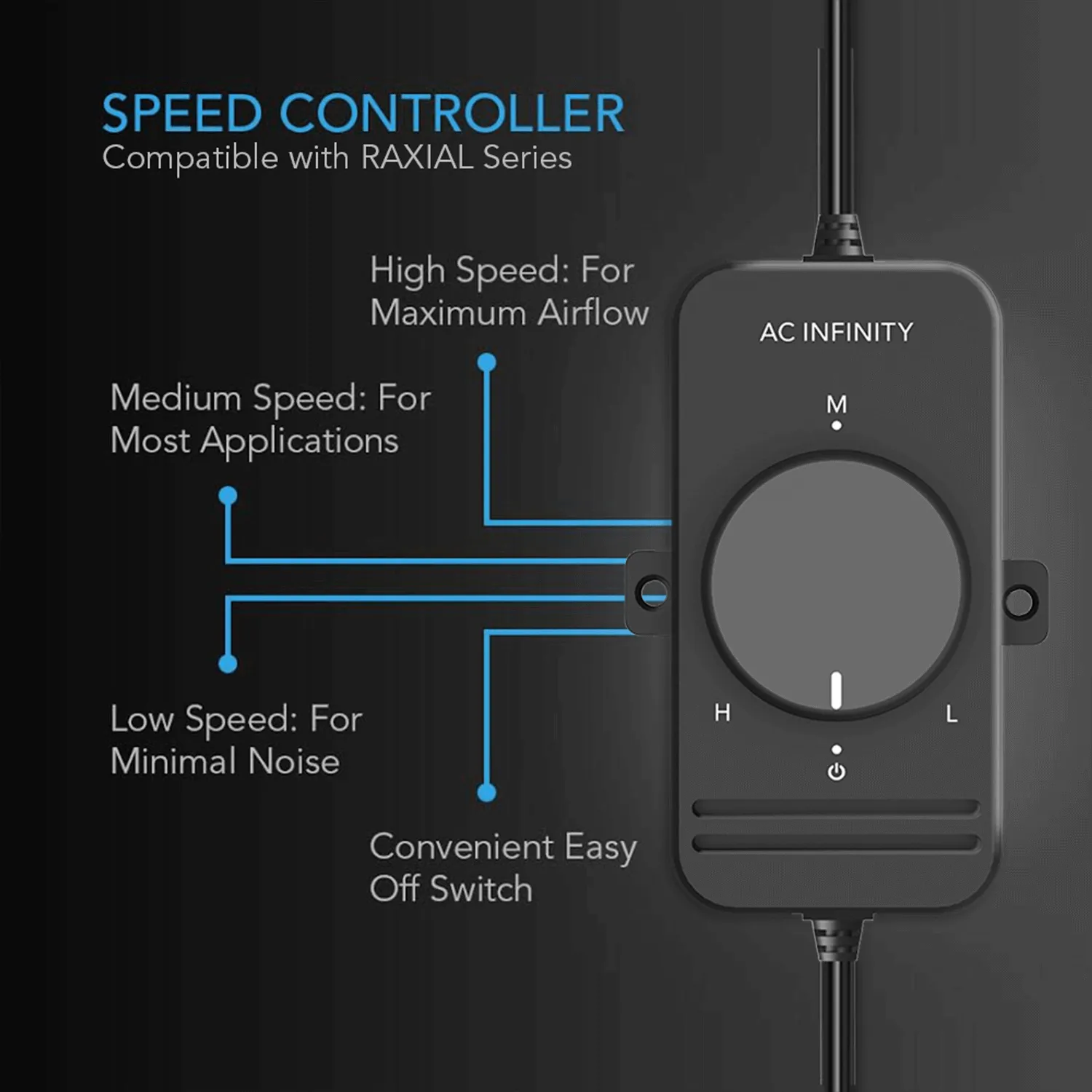

Speed Controller: The inline variable speed controller can control the fan's speed and turn it on or off. Turning the knob will increase or decrease the fan speed to optimize airflow and noise levels to fit your application. Its speed range incorporates a low, medium, and high threshold, producing up to 265 CFM and 35 dBA in noise.

Applications: This versatile inline booster fan is designed to be installed in between ducting for various situations that need improved air delivery. In households, it enhances airflow from HVAC units to eliminate stale air and odor in attics, workshops, kitchens, basements, etc. However, it is not suitable for use in restricted airflow applications like systems that use carbon filters. To see higher performing fans, refer to the CLOUDLINE Series.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: RAXIAL S6

Product Model: AC-RXS6

UPC Code: 819137021112

Product and Mounting Dimensions - Fan Unit

Duct Size: 6"

Total Dimensions: 7.28 x 5.90 x 5.90 inches

Cord Length to Controller: 72 inches (6 feet)

Cord Length to Plug: 36 inches (3 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 2.95 x 1.49 x 1.18 inches

Required Mounting Area: 1.49 x 1.18 inches

Hole to Hole Distance: 1.88 inches

Screw Hole Size: Ø 0.197 inches

Product Performance and Technical Specs

Maximum Airflow: 265 CFM

Total Noise: 35 dBA

Static Pressure: 0.3 inches H2O

Operating Voltage: 110V-120V AC

Power: 37 W

Current: 0.68 A

Operating Humidity: 35 to 85% RH

Operating Temperature: 40 to 140°F

Fan Bearings: Dual Ball Bearing

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:

Download the RoHS Certification:
