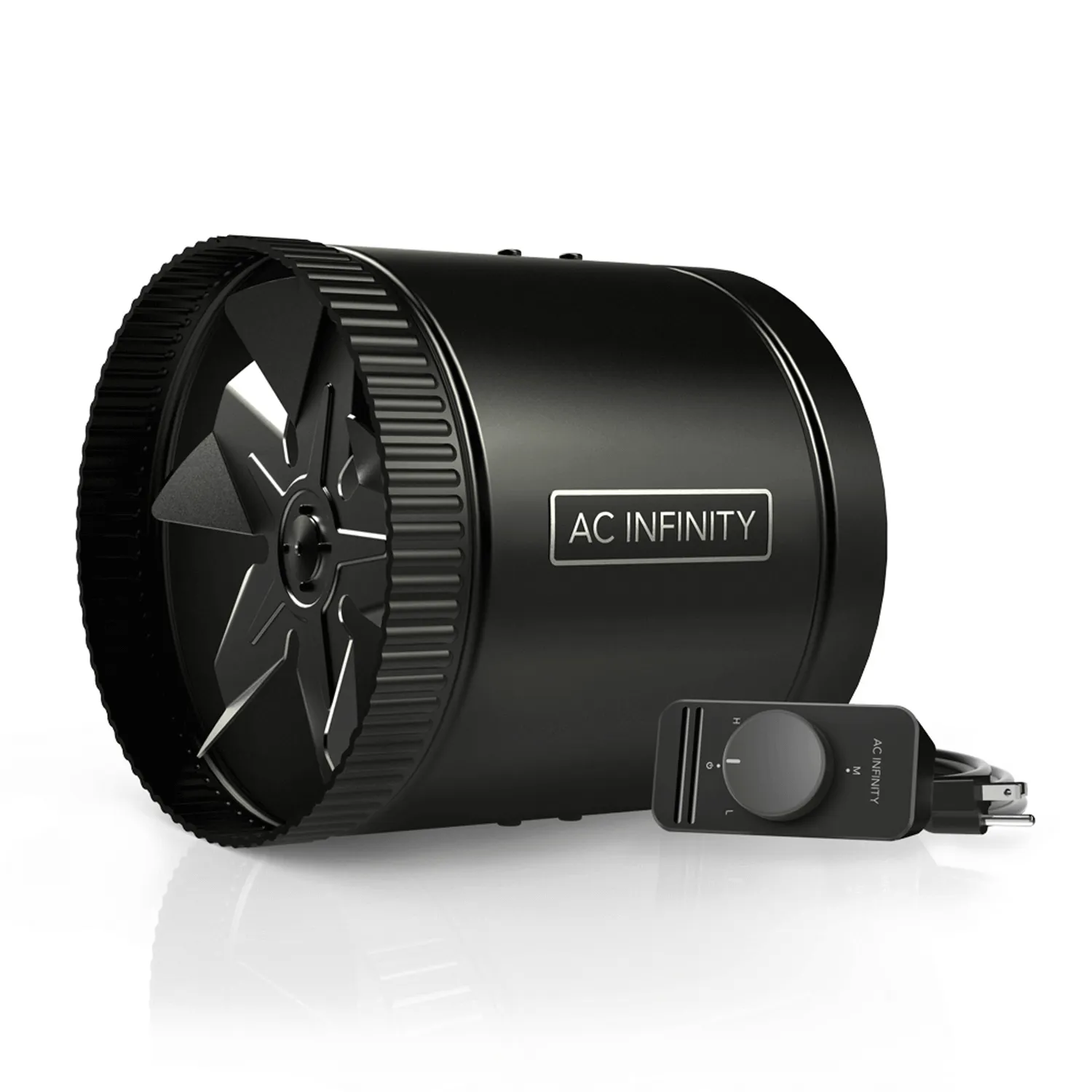

Description

Duct Fan Design: Primarily designed to enhance airflow in HVAC systems and ventilate areas such as attics and workshops. The fan ensures a conducive environment for your space.

Adjustable Speed Controller: This fan comes equipped with a variable fan speed controller, empowering you to adjust the airflow and noise level to best suit any application, ensuring optimal performance at your convenience.

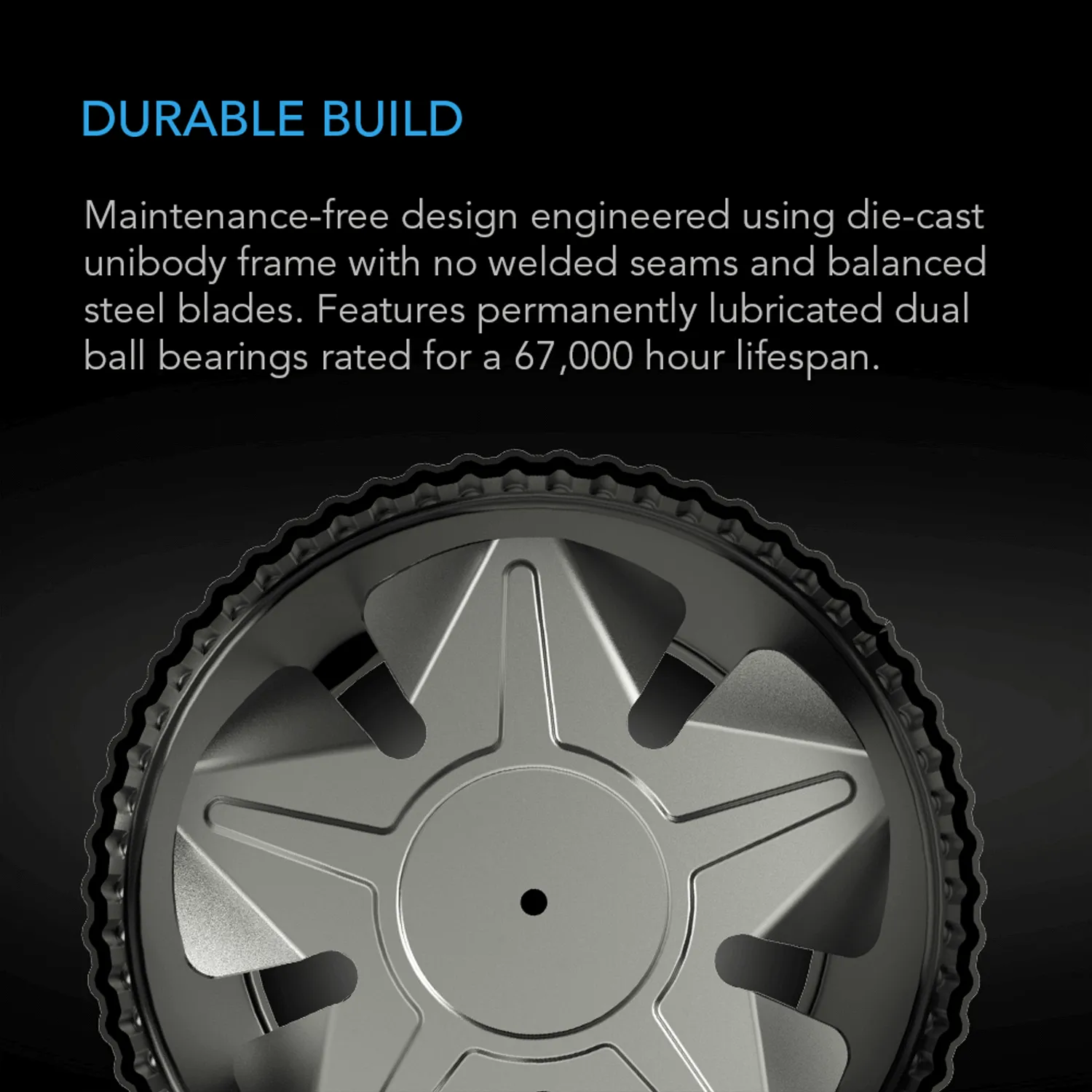

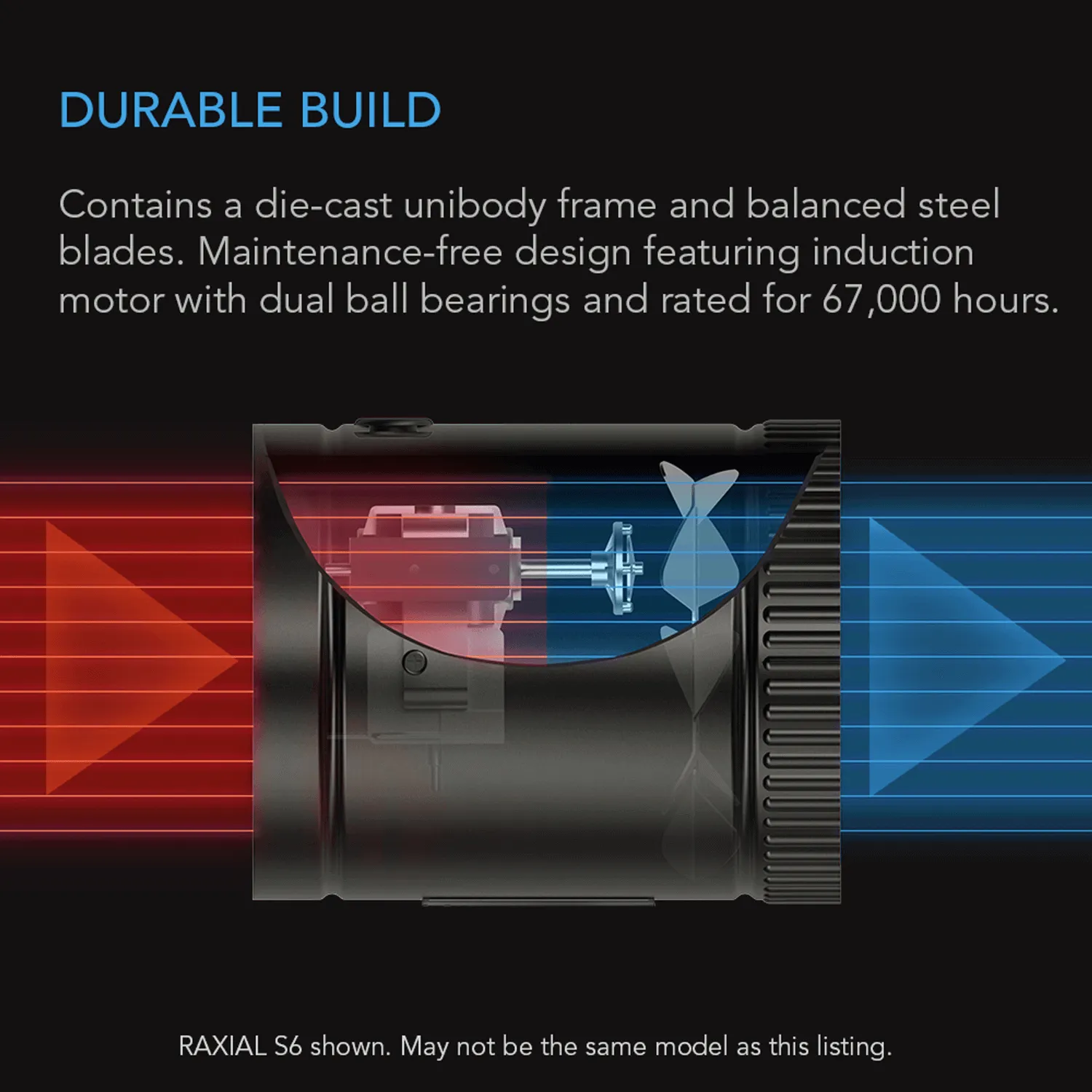

Unibody Construction: The fan features a unibody die-cast construction with no welded seams; this significantly lowers vibration while ensuring smoother airflow, enhancing the durability and efficiency of the fan.

AC Brushless Motor: This fan is equipped with an AC brushless motor with steel blades and lubricated bearings; however, it is not suitable for restricted airflow applications. This is to preserve the motor's longevity and maintain optimized performance.

Specifications: Duct Size: 8” | Dimensions: 7.28 x 7.87 x 7.87 in. | Airflow: 428 CFM | Noise: 43 dBA | Bearings: Dual Ball

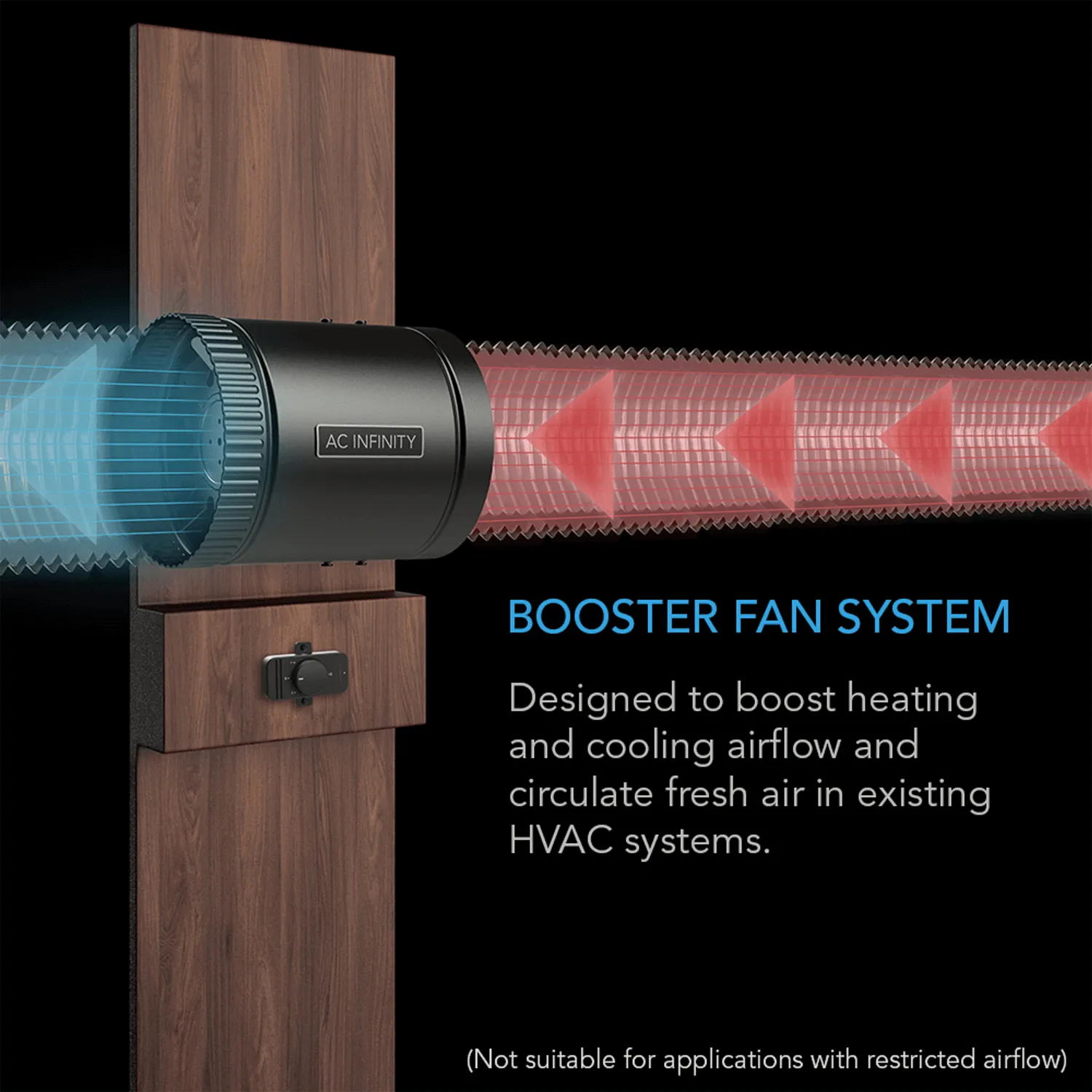

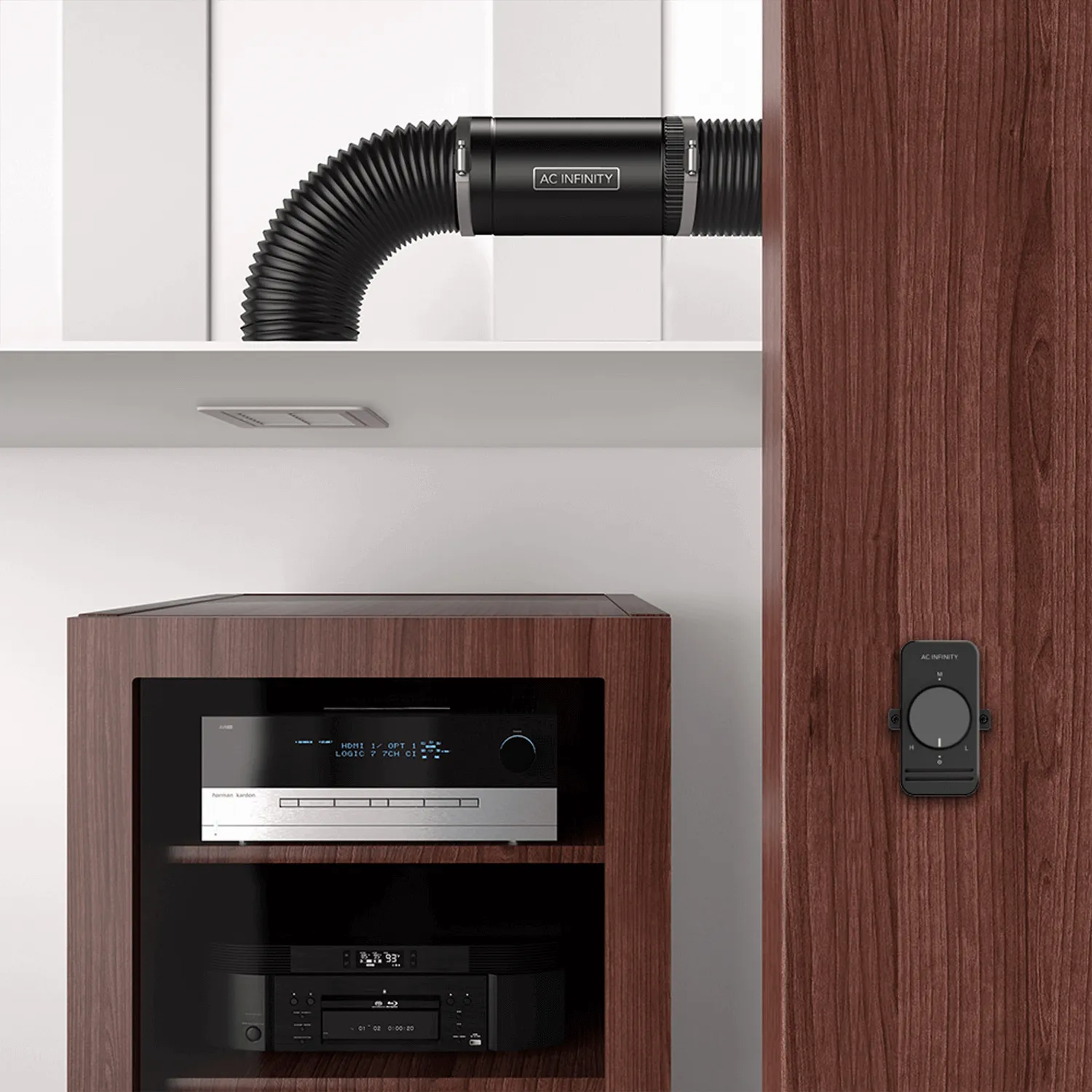

HVAC Application: This inline fan is designed to enhance airflow in heating and air conditioning applications, and ventilate rooms like attics, workshops, bathrooms, and kitchens. It can be adjusted for fan speed to meet specific airflow boosting needs. This fan is also versatile with mountings, allowing for both horizontal and vertical positioning.

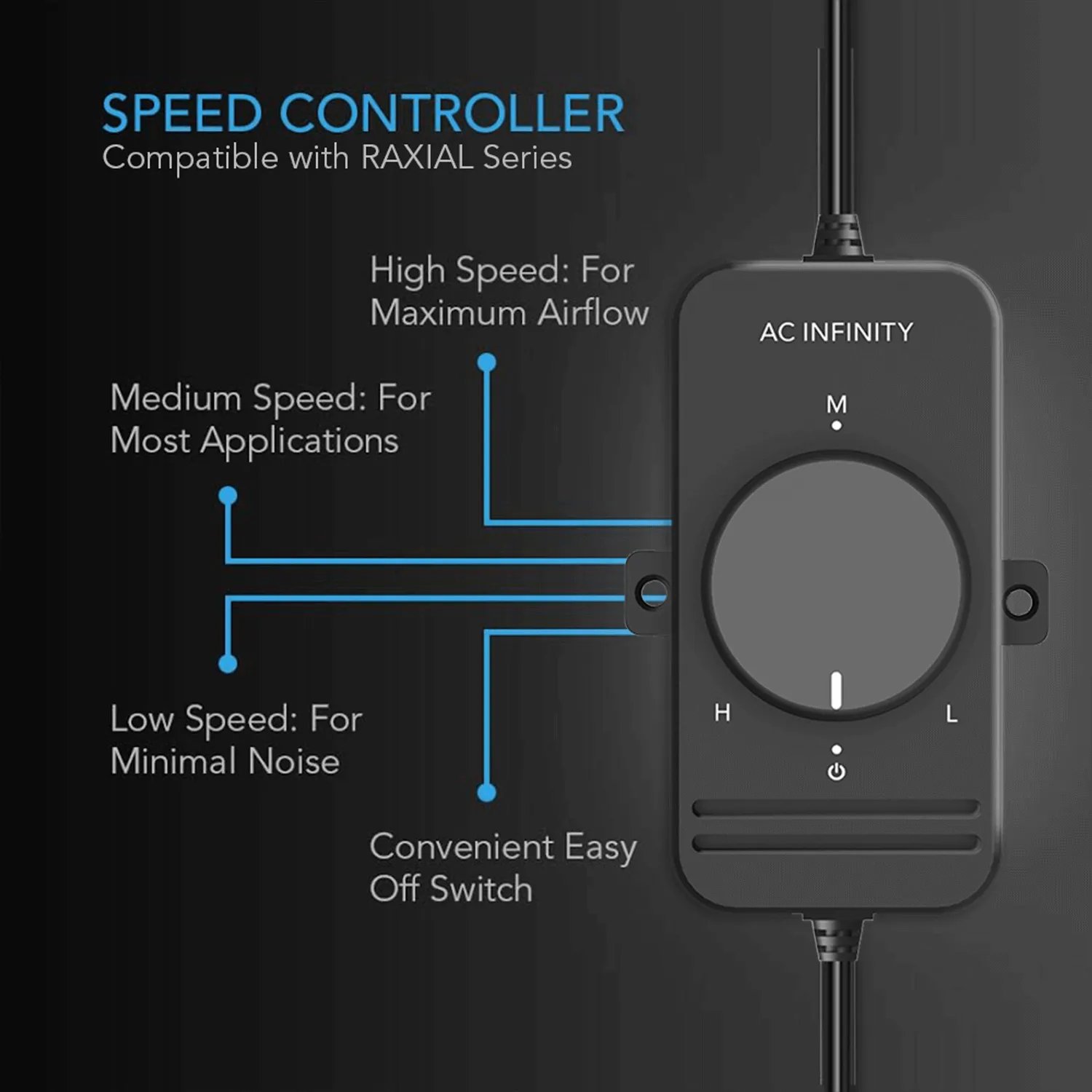

Speed Controller Use: The inline variable controller helps to adjust the fan’s speed and can turn it on or off. It can increase or decrease fan speed to optimize airflow and noise levels for your specific application. The speed controller uses a secure female aviation plug for a safe and tight connection to the booster duct fan.

Versatile Applications: This fan can be installed in between ducting for applications that need improved air delivery. However, please note that this fan is unsuitable for use in high static pressure applications like room ventilation or in systems with restricted airflow such as those using carbon filters. For more efficient performance, refer to the CLOUDLINE Series.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: RAXIAL S8

Product Model: AC-RXS8

UPC Code: 819137021129

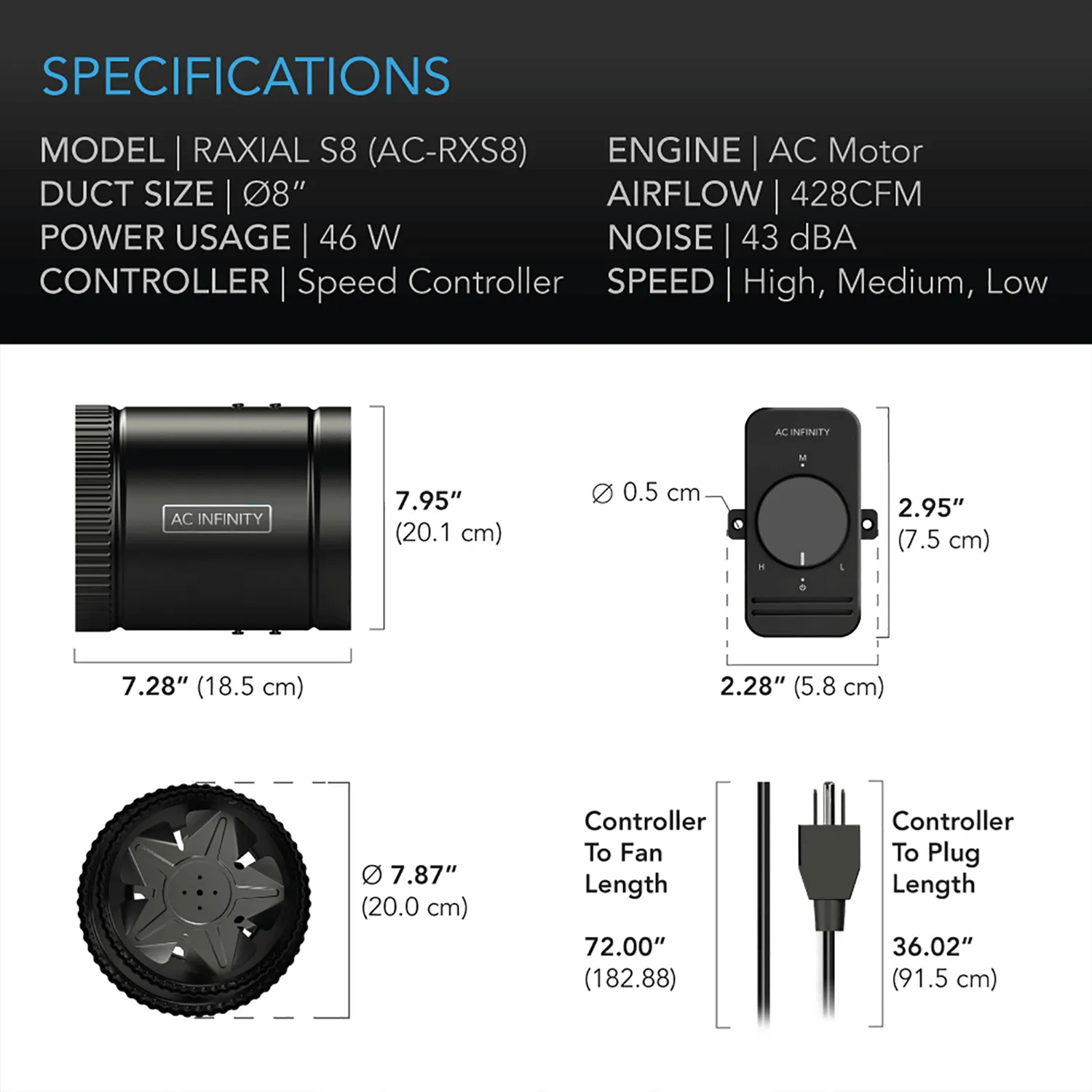

Product and Mounting Dimensions - Fan Unit

Duct Size: 8"

Total Dimensions: 7.28 x 7.87 x 7.87 in

Cord Length to Controller: 72 in. (6 feet)

Cord Length to Plug: 36 in. (3 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 2.95 x 1.49 x 1.18 in

Required Mounting Area: 1.49 x 1.18 in

Hole to Hole Distance: 1.88 in

Screw Hole Size: 0.197 in

Product Performance and Technical Specs

Maximum Airflow: 428 CFM

Total Noise: 43 dBA

Static Pressure: 2.45 mm-H20

Operating Voltage: 110V-120V AC

Power: 46 W

Current: 0.80 A

Operating Humidity: 35 to 85% RH

Operating Temperature: 40 to 140°F

Fan Bearings: Dual Ball Bearing

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:

Download the RoHS Certification:
