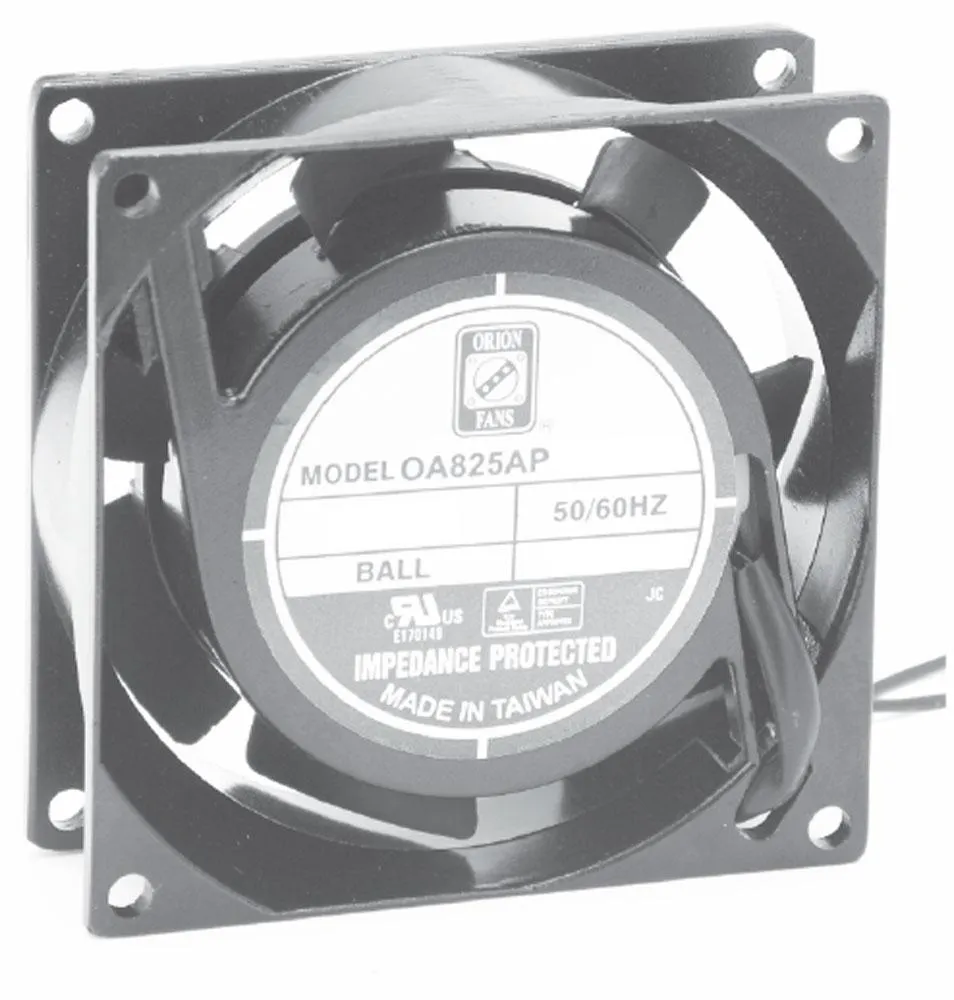

This fan is the high RPM version providing excellent airflow. These fans are typically used in situations where cooling capacity is a must such as DVR cases or on 80mm knock-outs in racks.

Specifications:

Motor: Shaded pole, impedance protected

Frame/Housing: Aluminum die-cast

Impeller: Glass reinforced thermoplastic, UL94V-0

Bearing System: Two ball

Dielectric Strength: 1 min. at 1,500VAC, 50/60Hz

Operating Temperature: -20ºC to 75ºC (-4ºF to 167ºF)

Life Expectancy at 40ºC: 60,000 Hours

Safety Approvals: UL, CUL, TUV standards

Speed: 3000 RPM

Max CFM: 25

Noise: 28dB

Voltage: 115

Voltage Range: 80~130

Watts: 9.0

Maximum Static Pressure: 0.21"

Connections: Wire Leads (300mm)

Color: Black

Size: 80mm x 80mm x 25mm (3.15" x 3.15" x 1.00").
